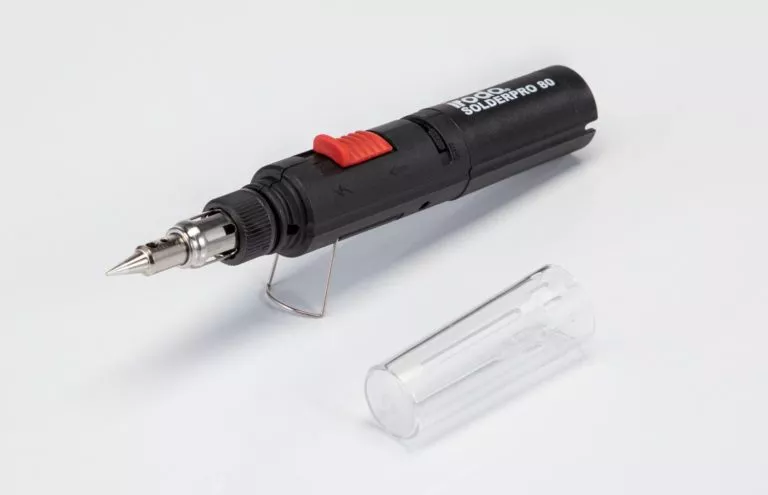

SOLDERPRO 80

Lite
Butane Soldering Iron

Carry Lite
Design

Multiple
Applications

18 Sec
Heat up

Solder on the Go

Cordless - Compact - Portable Iron
SOLDERPRO-80K Applications

Interchangeable cartridge tip with fast removal locking nut allows for a variety of applications.

Recommended for:
Acceptable for:
PCBs – Radio-controlled – Indoor lighting – Hobby models – Small appliance – Small engine – Repair – Crafts – Audio systems – Electrical – Marine – Jewelry – Automotive – Foam Cutting – Hot Knife
Not Recommended for:

Wet Surfaces – Underwater

Water Resistant Piezo Ignition

Our automated igniters are crafted with high quality piezo ceramic components molded in plastic and epoxy resin.
Rapid Heat Up​

The SOLDERPRO 80 heats up in under 18 seconds and variable heat control can be adjusted to deliver soldering temperatures of 752℉(400℃) , and a max torch temperature up to 1300℉(650℃).
25-100W High Energy Density

You need a powerful tool that can get the job done when it counts. This tool packs 100 watts of power, letting you get the task done quickly and efficiently.
Upgrade to the PRO Kit!

SOLDERPRO 80K

Sturdy Light-Weight Case - Easy Storage & Portability

The SOLDERPRO 80K Soldering iron kit comes with the PRO 80 Butane soldering torch and 4 high quality interchangeable tips for a variety of applications.

All your butane powered soldering torch accessories are neatly organized and protected in the handy carrying case.

What's in the Box:

S-51

Soldering Tip

  • Tip : Ø1mm
  • Length : 24.5mm
  • Bottom : Ø9.8mm

S-52

Chisel

  • Top : Ø2.4mm
  • Length : 24.5mm
  • Bottom : Ø9.8mm

S-53

Hot Knife Tip 45⁰

  • Thickness : 0.5mm
  • Length : 24.5mm
  • Width : 6mm
  • Bottom : Ø9.8mm

S-54

Hot Air Blower Tip

  • Top : Ø6.5mm
  • Length : 18mm
  • Bottom : Ø9.8mm
Product information:
LengthW/Cap169 mm (6.7 inches)
W/Soldering Tip167 mm (6.6 inches)
Width
25 mm (0.9 inches)
Height

W/Stand
47 mm (1.9 inches)
No Stand
29 mm (1.1 inches)
WeightEmpty Tank

64g ±2g
Watt
Equivalent to a power range25W-80W
BTU
346.5
TemperatureSoldering Tip≈ 752℉ (400 ℃)
Hot knife
≈ 752℉ (400 ℃)
Heat Blower
≈ 1300℉ (650 ℃)

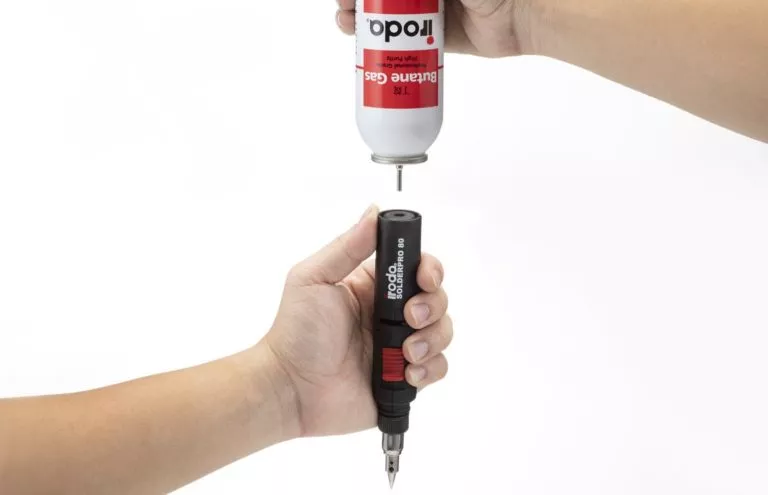

CapacityGas Container10ml (0.34 oz)
Flame length
Mid Setting
0.8cm (0.3 inches)
Operating TimeMid Setting/one gas filling
48min.
Heat up time
Working Temperature
18 Seconds

Warranty
Thank you for your interest in the products and services of Pro-Iroda Industries, Inc.

This Limited Warranty applies to physical goods, and only for physical goods, purchased from Pro-Iroda Industries, Inc. (the “Physical Goods”).

What does this limited warranty cover?
This Limited Warranty covers any defects in material or workmanship under normal use during the Warranty Period.

During the Warranty Period, Pro-Iroda Industries, Inc. will repair or replace, at no charge, products or parts of a product that proves defective because of improper material or workmanship, under normal use and maintenance.

What will we do to correct problem?
Pro-Iroda Industries, Inc. will either repair the Physical Goods at no charge, using new or refurbished replacement parts.

How long does the coverage last?
The Warranty Period for Physical Goods purchased from Pro-Iroda Industries, Inc. is 180 days from the date of purchase.

A replacement Physical Goods or part assumes the remaining warranty of the original Physical Goods.

What does this limited warranty not cover?
This Limited Warranty does not cover any problem that is caused by:
 Conditions, malfunctions or damage not resulting from defects in material or workmanship

What do you have to do?
To obtain warranty service, you must first contact us to determine the problem and the most appropriate solution for you.
