SOLDERPRO 70

Compact
Butane Soldering Iron

Compact
Size

Flint
Ignition

25 Sec
Heat up

Solder on the Go

Cordless - Compact - Portable Iron

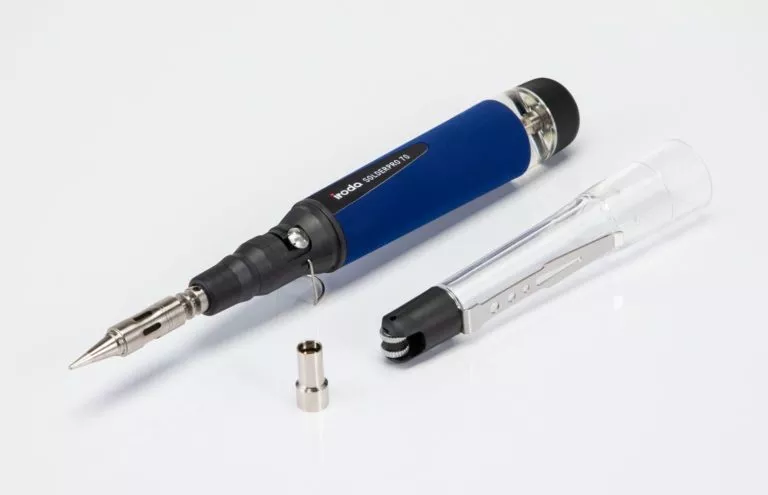

Iroda SOLDERPRO-70 is the larger model of our Flint ignition butane soldering irons, with a larger gas tank this iron is perfect for the longer project requirements and can operate up to 120 min per fill.

Variable heat control delivers up to 100 watts of power, making this iron a great choice for all your electronic repairs and soldering needs.

Its’ compact size fits nicely into your tool box and is ready to rapidly power on and solder, wherever you are.

SOLDERPRO-70K Applications

Interchangeable cartridge tip with fast removal locking nut allows for a variety of applications.

Recommended for:
Acceptable for:
PCBs – Radio-controlled – Indoor lighting – Hobby models – Small appliance – Small engine – Repair – Crafts – Audio systems – Electrical – Marine – Jewelry – Automotive – Foam Cutting – Hot Knife
Not Recommended for:

Wet Surfaces – Underwater

Protective Cap with Igniter

Soldering iron can be safely stored immediately after use with a heat resistant protective cap.

The cap incorporates a high-quality flint wheel gas igniter and a very useful pocket clip.

Rapid Heat Up

The SOLDERPRO 70 heats up in under 25 seconds and variable heat control can be adjusted to deliver soldering temperatures of 842℉(450℃), and a max torch temperature up to 2400℉(1300℃).

Visible Gas Tank

Transparent tank/reservoir for easy fuel indication, one refill lasts 120 min at medium temp range.

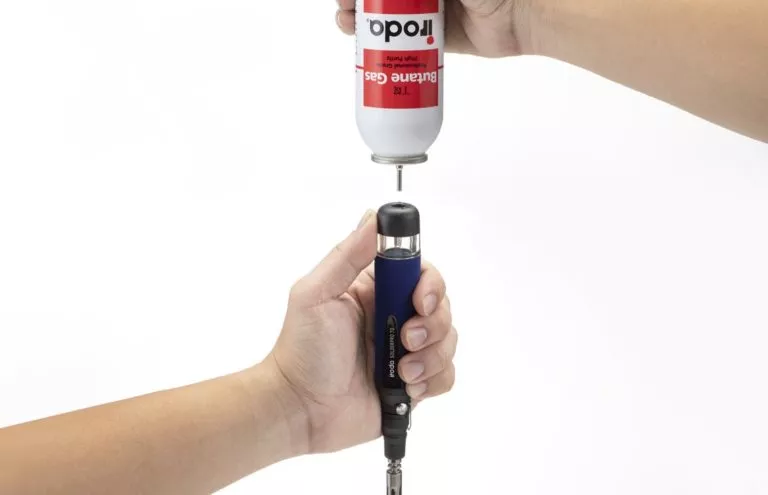

This model, like all models in the SOLDERPRO series, is easily refilled with butane gas.

Upgrade to the PRO Kit!

SOLDERPRO 70K

Sturdy Light-Weight Case - Easy Storage & Portability

The SOLDERPRO 70K Soldering iron kit comes with the PRO 70 Butane soldering torch and 4 high quality interchangeable tips for a variety of applications.

All your butane powered soldering torch accessories are neatly organized and protected in the handy carrying case.

What's in the Box:

S-01

Soldering Tip

  • Tip : Ø1mm
  • Length : 37.9mm
  • Bottom : Ø9mm

S-05

Hot Knife Tip 45⁰

  • Thickness : 2.8mm
  • Length : 37.6mm
  • Bottom : Ø9mm

S-06

Torch Tip

  • Top : Ø7mm
  • Length : 18.7mm
  • Bottom : Ø8.7mm

S-07

Hot Air Blower Tip

  • Top : Ø7.9mm
  • Length : 24.9mm
  • Bottom : Ø9mm
Product information:
LengthW/Cap220 mm (8.7 inches)
W/Soldering Tip193 mm (7.6 inches)
Width26 mm (1 inch)
HeigthW/Stand
26 mm (1 inch)
No stand
29 mm (1.1 inches)
WeightEmpty Tank

66g ±2g
Watt
Equivalent to a power range25W-80W
BTU
346.5
TemperatureSoldering Tip≈ 842℉ (450 ℃)
Torch≈ 2400℉ (1300 ℃)
Hot knife
≈ 842℉ (450 ℃)
Heat Blower
≈ 1300℉ (650 ℃)
CapacityGas Container17ml (0.57 oz)
Flame length
Mid setting
1cm (0.4 inches)
Operating TimeMid setting / One gas filling
120min.
Heat up time
Working Temperature
25 Seconds

Warranty
Thank you for your interest in the products and services of Pro-Iroda Industries, Inc.

This Limited Warranty applies to physical goods, and only for physical goods, purchased from Pro-Iroda Industries, Inc. (the “Physical Goods”).

What does this limited warranty cover?
This Limited Warranty covers any defects in material or workmanship under normal use during the Warranty Period.

During the Warranty Period, Pro-Iroda Industries, Inc. will repair or replace, at no charge, products or parts of a product that proves defective because of improper material or workmanship, under normal use and maintenance.

What will we do to correct problem?
Pro-Iroda Industries, Inc. will either repair the Physical Goods at no charge, using new or refurbished replacement parts.

How long does the coverage last?
The Warranty Period for Physical Goods purchased from Pro-Iroda Industries, Inc. is 180 days from the date of purchase.

A replacement Physical Goods or part assumes the remaining warranty of the original Physical Goods.

What does this limited warranty not cover?
This Limited Warranty does not cover any problem that is caused by:
 Conditions, malfunctions or damage not resulting from defects in material or workmanship

What do you have to do?
To obtain warranty service, you must first contact us to determine the problem and the most appropriate solution for you.
