SOLDERPRO 180

Heavy Duty
Butane Soldering Iron

Self-Standing
Design

Liquid Energy
Cell

Oversized
Soldering Tip

Solder on the Go

Cordless - Compact - Portable Iron

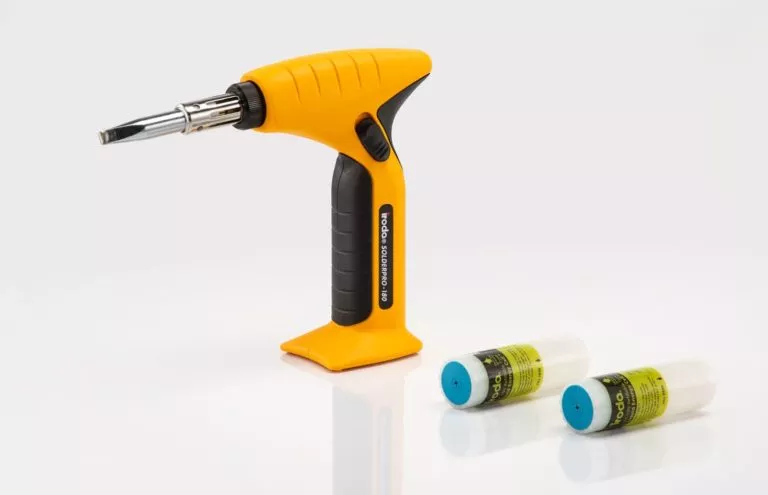

Iroda SOLDERPRO-180 is excellent for extra long working hours and heavy duty shielding works, especially for soldering and desoldering of shielding’s.Plus with a patented LEC(Liquid Energy Cell) fuel cell that you now have an easily replaceable gas tank that you don’t need to buy a whole new soldering iron.



This heavy duty features in hands free design allowing heat shrinking works effectively.

SOLDERPRO-180K Applications

Interchangeable cartridge tip with fast removal locking nut allows for a variety of applications.

Recommended for:
Acceptable for:
PCBs – Radio-controlled – Indoor lighting – Hobby models – Small appliance – Small engine – Repair – Crafts – Audio systems – Electrical – Marine – Jewelry – Automotive – Foam Cutting – Hot Knife
Not Recommended for:

Wet Surfaces – Underwater

Heavy Duty, Solid Frame, Ergonomic Grip

The body constructed of hi-tech polymers provides a sturdy yet lightweight feel. The internal metal body and ceramic parts ensure precision operation and long life.

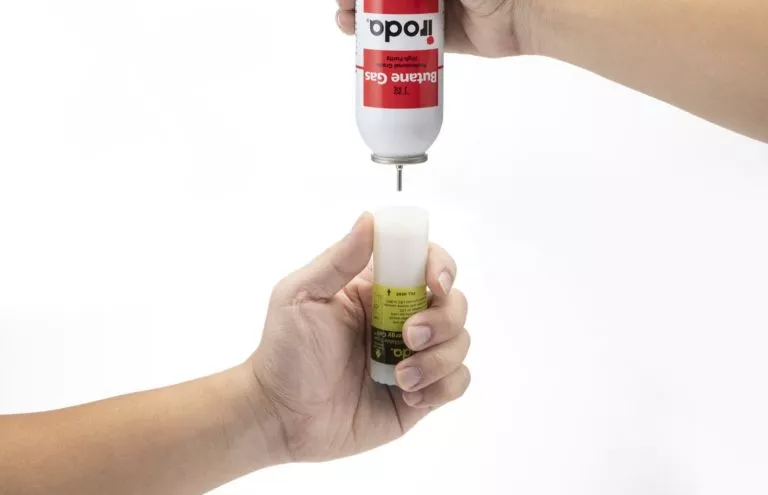

Quick Refill

This model like all models in the SUPERPRO series is easily refilled with any brand of butane gas.

Water Resistant Piezo Ignition

Our automated igniters are crafted with high quality piezo ceramic components molded in plastic and epoxy resin.

Our cartridge torches have benefits such as high durability and high electrical output as well as smooth operation and high tolerance for extreme conditions.
Fast Heat-up & Recovery Time

The SOLDERPRO 180 heats up in under 46 seconds and variable heat control can be adjusted to deliver soldering temperatures  752℉(400℃) , and a max torch temperature up to 1300℉(650℃).
30-125W High Energy Density

You need a powerful tool that can get the job done when it counts. This tool packs 125 watts of power, letting you get the task done quickly and efficiently.

The PRO-180 offers an easy to use, versatile conduction tool for all soldering and rework applications
Upgrade to the PRO Kit!

SOLDERPRO 180K

Sturdy Light-Weight Case - Easy Storage & Portability

The SOLDERPRO 180K Soldering iron kit comes with the PRO 180 Butane soldering torch and 4 high quality interchangeable tips for a variety of applications.

All your butane powered soldering torch accessories are neatly organized and protected in the handy carrying case.

What's in the Box:

PS-50

Soldering Tip

  • Thickness : 2.5mm
  • Top : 9.7mm
  • Length : 50mm
  • Bottom : Ø14.5mm

PS-60

Conical

  • Tip : Ø1.8mm
  • Length : 50mm
  • Bottom : Ø14.5mm

PS-70

Hot Air Blower Tip

  • Top : Ø10mm
  • Length : 30.5mm
  • Bottom : Ø14.5mm

PS-80

Deflector

  • Length : 37mm
  • Width : 28mm
  • Bottom : Ø12.6mm
Product information:
Dimension
Length
203 mm (8 inches)
Width
40 mm (1.6 inches)
Height
175 mm (6.9 inches)
Weight
Empty Tank
340g ±2g
Watt
Equivalent to a power range30W-125W
BTU
512
TemperatureSoldering Tip≈ 752℉ (400 ℃)
Heat Blower
≈ 1300℉ (650 ℃)
Deflector
≈ 1300℉ (650 ℃)
CapacityGas Container30ml (1.01 oz)
Flame length
Mid Setting
1.2cm (0.5 inches)
Operating TimeMid Setting/One gas filling
140min.
Heat up time
Working temperature
46 Seconds

Warranty
Thank you for your interest in the products and services of Pro-Iroda Industries, Inc.

This Limited Warranty applies to physical goods, and only for physical goods, purchased from Pro-Iroda Industries, Inc. (the “Physical Goods”).

What does this limited warranty cover?
This Limited Warranty covers any defects in material or workmanship under normal use during the Warranty Period.

During the Warranty Period, Pro-Iroda Industries, Inc. will repair or replace, at no charge, products or parts of a product that proves defective because of improper material or workmanship, under normal use and maintenance.

What will we do to correct problem?
Pro-Iroda Industries, Inc. will either repair the Physical Goods at no charge, using new or refurbished replacement parts.

How long does the coverage last?
The Warranty Period for Physical Goods purchased from Pro-Iroda Industries, Inc. is 180 days from the date of purchase.

A replacement Physical Goods or part assumes the remaining warranty of the original Physical Goods.

What does this limited warranty not cover?
This Limited Warranty does not cover any problem that is caused by:
 Conditions, malfunctions or damage not resulting from defects in material or workmanship

What do you have to do?
To obtain warranty service, you must first contact us to determine the problem and the most appropriate solution for you.
